DELTA PT® DS

Specificații

Overview
- Standard length: approx. 2 to 10 x nominal diameter (other on request)
- Safe and reliable direct assembly into thermosets
- Saving potential through standardisation: One type of screw for thermoplastic and thermoset
- Easy assembly due to good application of the screw
- Smaller hole depth possible compared to screws with a milled cutting edge
- Larger flank coverage at the same insertion depth compared to screws with a milled cutting edge

Descărcări

Romanian

Design recommendations DELTA PT DS 1 MB

English

Design recommendations DELTA PT DS 1 MB

Hotline

Applications Engineer

hotline@ejot.com
+49 2751 529-123

CAD & more - Your Online-Service

In this area we provide CAD data in various formats as well as PDFs of the technical drawings of our products EVO PT®, DELTA PT®, SHEETtracs® and ALtracs® Plus. Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.

CAD & more

"Specialist" for thermosets

Alternative materials, that were not focused on by the fastening technology a few years ago, are now commonplace in various industrial applications. Especially the thermosets often replace other materials, in the automotive industry oftentimes due to weight savings of components. The reliable and durable connection of these highly loaded components makes high demands on the used fastening elements. EJOT meets these demands with the inovative DELTA PT^® DS, based on the proven DELTA PT^® screw, which is qualified for the most difficult self-tapping applications into thermosets due to its special thread layout.

Modified thread ends

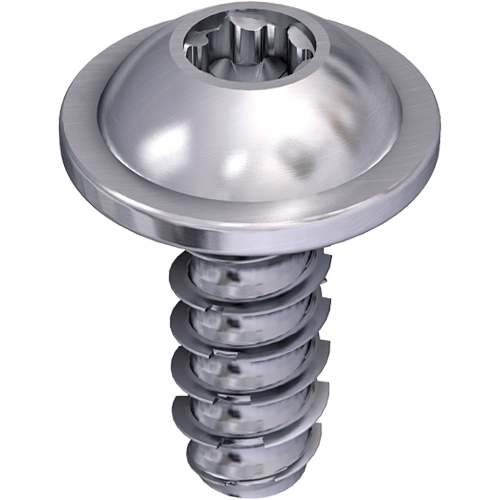

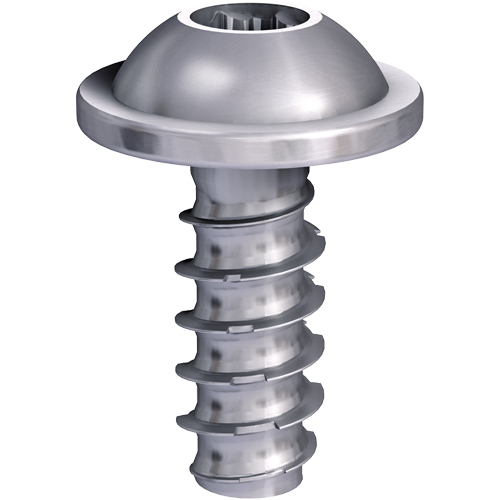

The thread form „DS“ (DuroSet) is the "key" for the solution of these difficult fastening challenges. For the EJOT DELTA PT^® DS screw special grooves are applied to the established DELTA PT^® thread geometry, which enable optimal forming of the female thread. These grooves are pronounced at the screw point and taper off towards the screw head. This way the new thread forming zone enables a low installation and high stripping torque and breaking of the screw boss can be effectively prevented with DELTA PT^® DS. This innovative screw is optimised for designs that make very high demands on the direct assembly process due to hardness and brittleness of the used material.
