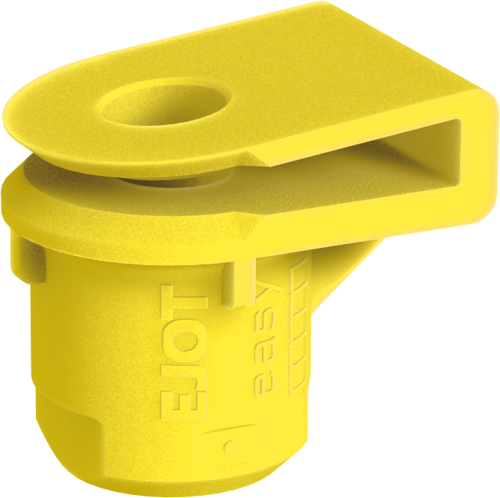

EASYboss®

EASYboss

Specificații

  • Overview

    • Side snap-fit assembly
    • High axial load-carrying capacity due to large bearing surface
    • Reduced component weight
    • No corrosion
    • Consistent tightening torques
    • No catching of the parts
    • Easy, no-damage disassembly
    • Recyclable

Hotline

Applications Engineer

CAD & more - Your Online-Service

In this area we provide CAD data in various formats as well as PDFs of the technical drawings of our products EVO PT®, DELTA PT®, SHEETtracs® and ALtracs® Plus. Additionally, CAD & more offers you the possibility to design your individual joints with the aid of prognosis programs or to check their feasibility by APPLICATION CHECKs. Furthermore, you can download the latest product brochures, technical publications and the EJOT company standards.


CAD & more

The most suitable clip

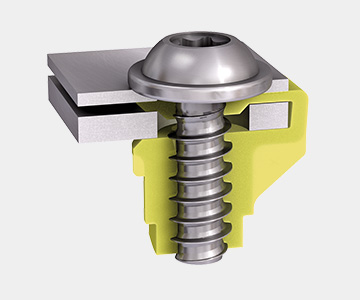

Development focus of the EJOT EASYboss® was the design of an all-around improved alternative to the still commonly used sheet metal clips. Main fields of application for the EASYboss® are designs where direct assembly is not possible. Reasons for this are insufficient installation depths in the component or other tool related conditions. Further possible uses are in thin-walled components made of different materials, for example thin sheets. The EASYboss® is assembled through snap fitting sideways to the fastening direction from the edge of the part or through an access hole in a flat component. Tolerances of the hole pattern can be reliably compensated by the fastening element. For varying material and hole wall thicknesses a range of different sizes are available. In particular the combination of EJOT EVO PT® screw and EASYboss® offers ideal prerequisites for the direct assembly into plastic.
