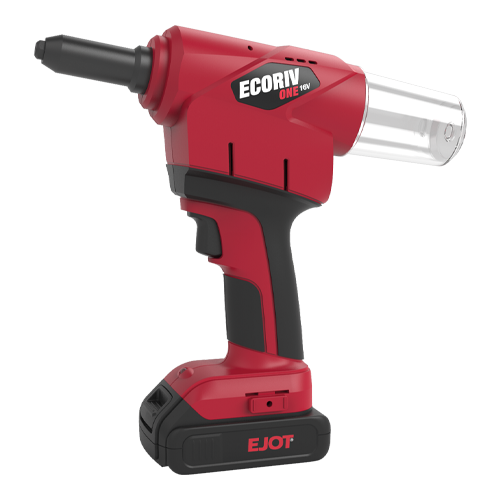

ECORIV® ONE battery riveting tool 16.0V / 2.0 Ah

Aplicații

• For blind rivets made of aluminium, steel, copper and stainless steel up to Ø 5.0 mm
• For folding blind rivets up to Ø 5.2 mm

Benefits

• Weight only 1.87 kg
• Transparent mandrel container
• Powerful Li-Ion batteries with charge indicator
• Riveting point illuminated by LEDs
• Delivery with retention nosepieces for rivets 2.4 mm, 3.0/3.2 mm, 4.0 mm and 4.8/5.0 mm
• High-quality rapid charger
• Prolonged front sleeves are optional
• Special nosepieces are optional

Detalii tehnice

• Working stroke: 21 mm
• Tensile force: 10,000 N
• Max. pin diameter: 3.4 mm
• Battery capacity 2.0 Ah: Up to 2,000 pcs. (Rivets per battery charge depend on type and material)
• Charging time of battery 2.0 Ah: < 1 hour
• Weight of riveting tool: 1.54 kg
• Weight of battery 16 V / 2.0 Ah: 0.33 kg
• Height (without battery): approx. 24 cm
• Length (incl mandrel container): approx. 28 cm

Included in delivery
1 battery riveter ECORIV ONE
4 retention nosepieces

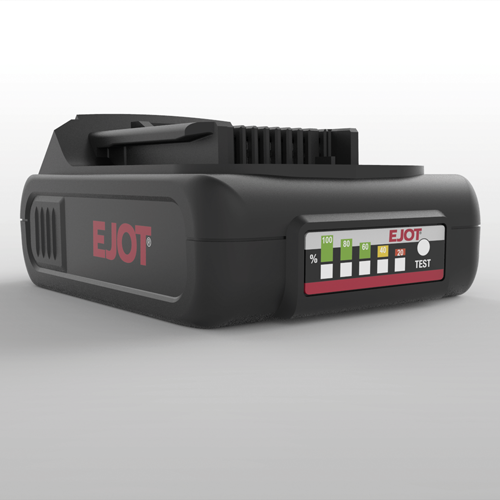

2 batteries 2.0 Ah

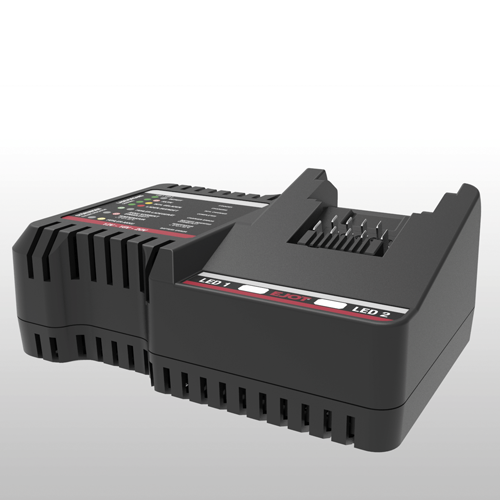

1 rapid charger 220 V
1 installation wrench

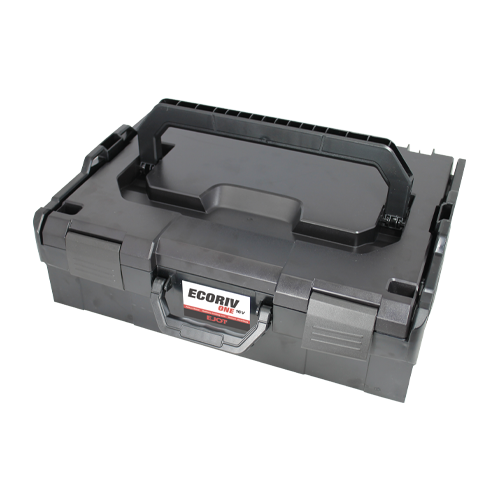

1 plastic transport box L-Boxx

Order information: ECORIV TWO upon request. Standard and special nosepieces upon request.
