EJOT® Șurub autoforant din oţel inoxidabil JT4-FR-2H/6-4,8



Specificații
-
Aplicații
- Sistem de fixare pentru placarea pereţilor exteriori ALUCOBOND® conform Z-33.2-6
- Pentru fixarea ușoară pe subconstrucții din aluminiu de 2 mm
-
Proprietăți
- Oţel inoxidabil A2

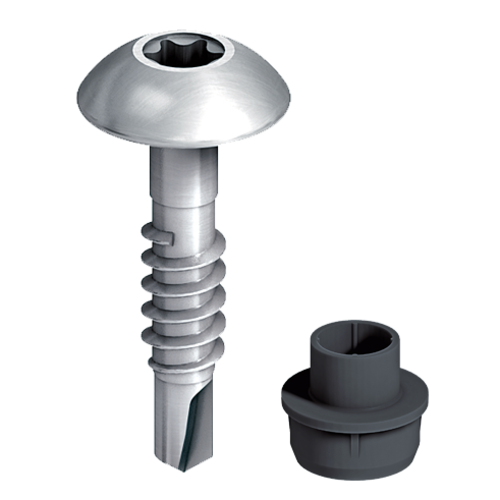

- Cu bucșă de centrare pentru formarea punctelor culisante
Avantaje
- Găurire centrală și înșurubare simultană a plăcii pe subconstrucție
- Fără găurire prealabilă a subconstrucției
- Partea fără filet de sub capul șurubului permite o rotație suplimentară a șurubului după așezarea capului
-
Detalii tehnice
- Diametru: 4,8 mm
- Capacitate de găurire tI + tII: 1,0 + 3,0 mm
- Acţionare: hexalobulară TX25
- Ø bucşă de centrare a găurii: 8,5 mm
- Diametrul capului: 12 mm
- Înălțimea capului: 3,4 mm
Indicație
Pentru prelucrare, vă recomandăm bitul special cu hexagon interior rotund TX25W-1/4/Cx25 cu design conic pentru fixarea în capul șurubului. Pentru formarea punctelor fixe se recomandă găurirea prealabilă a plăcii Ø 4,0 mm.
