Șurub autoforant JF3-FR-2-5,5

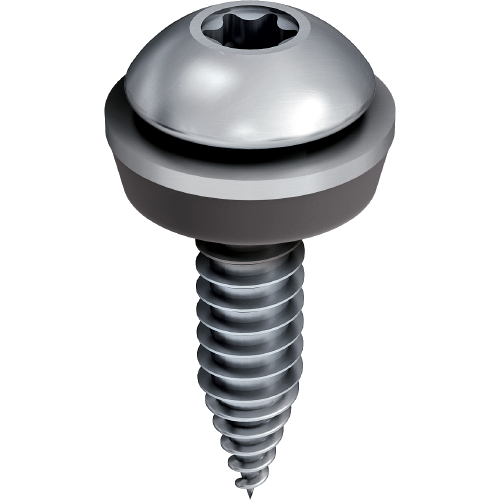

EJOT_EJOFAST_JF3-FR-2_Pos-1_500x500

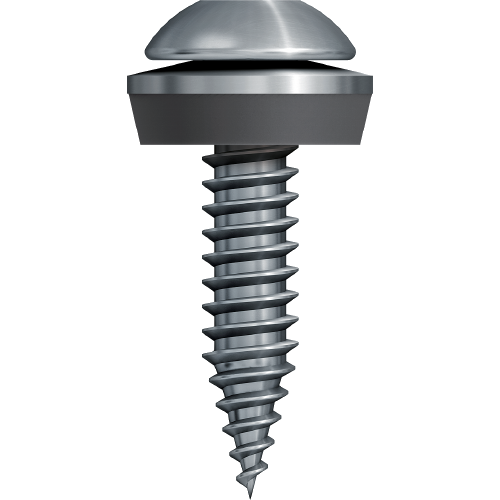

EJOT_EJOFAST_JF3-FR-2_Pos-2_500x500

Specificații

  • Aplicații

    Fixarea componentelor și consolelor pe profile metalice cu pereți subțiri pentru instalații fotovoltaice:

    • Fixarea manșoanelor de tabla trapezoidală, a clemelor pentru fixarea sistemelor de cusături verticale sau a elementelor de reținere pre-perforate pe substructuri din oțel cu pereți subțiri (ex. table profilate)
    • Fixarea plăcilor deflector de vânt pe elementele profilate

  • Proprietăți

    • Oțel inoxidabil A2, cu vârf din oțel călit
    • Șaibă de etanșare din oțel inoxidabil
    • Șaibă de etanșare preasamblată
    • Poziționare exactă, fără alunecare
    • Fixare fără șpan și fără găurire preliminara
    • Proprietăți de prindere excelente

  • Detalii tehnice

    • Diametru: 5,5 mm
    • Capacitatea de găurire tI + tII: 1,0 + 1,0 mm
    • Acționare: Cap hexalobular T25
    • Turația de înșurubare: max. 1800 rpm

*JF6 realizat din oțel inoxidabil la cerere

Descriere produs Cod articol Unitate
JF3-FR-2-5.5x25-E11 3593292391 500

Specificații

Descriere produs
JF3-FR-2-5.5x25-E11
Unitate
500
