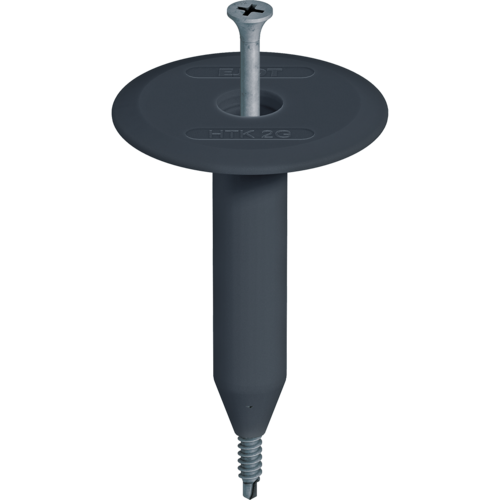

EJOT® HTK-2G-TKR loose, pre-assembled
![](/medias/sys_master/images/images/hf6/hcd/8854408200222/ETA-CE-Kombi-4C-klein.png)
![](/medias/sys_master/images/images/h2d/h1a/8856620236830/Rostfrei-Stainless.png)
![](/medias/sys_master/images/images/h7b/h95/8898941354014/Logo-EPD.png)
![](/medias/sys_master/images/images/hd2/hdc/8898947547166/Logo-.png)
Specificații
-
Aplicații
- To fix roofing membranes and insulating material to substructures made of sheet steel ≥ 0.70 mm ≤ 1.5 mm, timber or wood-based material
- For new buildings
- For the installation with ECOSET HTK installation tool up to 280 mm total panel thickness
- For special requirements of resistance to imposed loads
- To reduce thermal bridges
-
Proprietăți
- Stress plate: high-grade plastic material
- DABO® screw TKR = case-hardened steel, Climadur*-coated > Telescope design for resistance to imposed loads
- Combinations for total panel thicknesses up to 605 mm possible
- Processing in an upright position possible with the bit extension with spring pin or with the ECOSET HTK installation tool
-
Note
Upon request also available with VHT-R and VHT-E
*Climadur
High-grade coating to improve the corrosion protection (15 Kesternich cycles, DIN 50018, 1997)
Filtru
Filtre selectate
Descriere produs | Cod articol | Unitate |
---|---|---|
HTK-2G-TKR-100-55/70-loose, pre-assembled | 3705507024 | |
Specificații
|
||
HTK-2G-TKR-120-95/50-loose, pre-assembled | 3709505024 | |
Specificații
|
||
HTK-2G-TKR-140-95/70-loose, pre-assembled | 3709507024 | |
Specificații
|
||
HTK-2G-TKR-160-115/70-loose, pre-assembled | 3711507024 | |
Specificații
|
