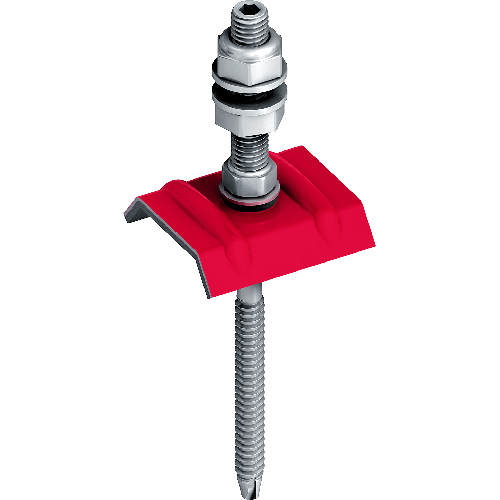

EJOT® Set fixare solară JT3-SB-3-8,0xL cu șaibă E16 + calotă ORKAN

Produktbild1
Produktbild2

Specificații

  • Aplicații

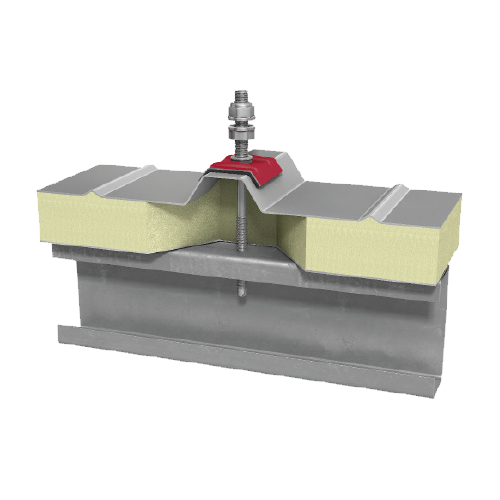

    • Pentru fixarea instalațiilor solare și fotovoltaice pe substructuri de oțel 1,5 - 3 mm
    • Poate fi folosit și pentru substructuri din oțel  ≥ 3,0 mm
    • Pentru substructuri din oțel de înaltă rezistență până la S450GD

  • Proprietăți

    • Oțel inoxidabil A2
    • Cu șaibă de etanșare E16 + Calotă ORKAN
    • ETA-22/0762

  • Beneficii

    • Adaptare rapidă pe acoperișurile existente
    • Fără găuri suplimentare în placarea acoperișului
    • Utilizarea sistemelor de etanșare dovedite
    • Nu sunt necesare instrumente speciale de asamblare
    • Fixare extrem de sigură cu încastrare directă în
      substructură

Order information: ORKAN storm washers must be ordered separately with specification of the storm washer type. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089. Also available with screw nuts with locking serrations DIN EN ISO 1661.

Filtru

Filtre selectate

    Descriere produs Cod articol Unitate
    Set JT3-SB-3-8.0x85/70 E16 3340891907

    Specificații

    Descriere produs
    Set JT3-SB-3-8.0x85/70 E16
    Unitate
    Set JT3-SB-3-8.0x115/70 E16 3341191907

    Specificații

    Descriere produs
    Set JT3-SB-3-8.0x115/70 E16
    Unitate
    Set JT3-SB-3-8.0x155/70 E16 3341591907

    Specificații

    Descriere produs
    Set JT3-SB-3-8.0x155/70 E16
    Unitate
    Set JT3-SB-3-8.0x195/70 E16 3341991907

    Specificații

    Descriere produs
    Set JT3-SB-3-8.0x195/70 E16
    Unitate
